Hybrid Cable(12 x 24 pairs)

Please contact us for more detail spec & capacity

General Features

  1. for FTTA(RRU, BBU)

  2. 12 Pair Electric conductors (AWG 6 stranded)

  3. 4 Twisted pair Alarm Wire (AWG 18 stranded)

  4. 24 Fiber Optic Duplex LC Connector

Technical Specification

Composite General

Cable Structure

Cable structure

General Composite Specification

Composite General spec

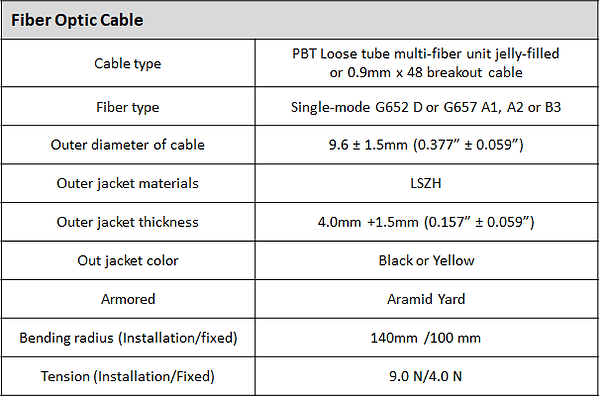

Fiber Optic Cable Specification

Fiber Optic Assembling
Hybrid(12&24)fiber optic spec

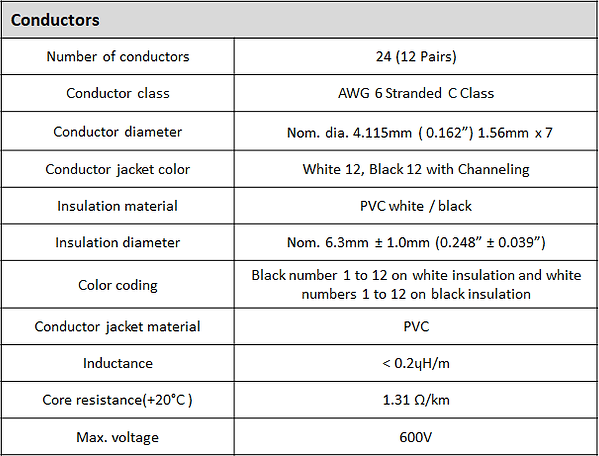

Conductor Specification

Drawing of conductors
Hybrid (12&24)conductor spec

Wooden Cable Bobbin

Double Flange

Diameter of Flange :  90cm / 50cm (35.433”/19.685”)

Width : 70 : 10cm (27.59” : 3.937”)

Thickness : 3cm (1.181”)

Cable Bobbin
