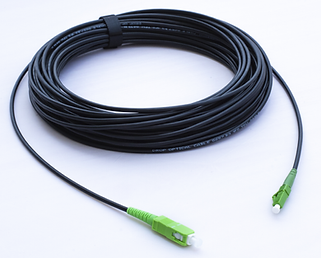

TPU 3.0mm FTTH Drop Cabe

Please contact us for more detail spec & capacity

Applicable Standards

1. ITU-T G.650 Definition and test methods for the relevant parameters of SM fibers

2. ITU-T G.657 Characteristics of G.657A2 fiber and cable

3. IEC 60793-1 Optical fiber Part 1 : Generic specification

4. IEC 60793-1 Optical fiber Part 2 : Product specifications

5. IEC 60794-1 Standard for optical fiber outside plant communications cable

6. IL/RL : Grade B

7. Tensile Performance : > 400N, 600N, 800N according to customer request

Technical Specificaton

1. LC/APC Boot length : 14.5mm or 17.0mm Available

2. Guarantee : Tensile > 20~30kgf/ 200~300N (Rivet Ring AL Alloy : Tensile > 20.0/kgf SUS 304 : Tensile > 30.0/kgf)

3. Develop Special LC Rivet Ring & Stopper

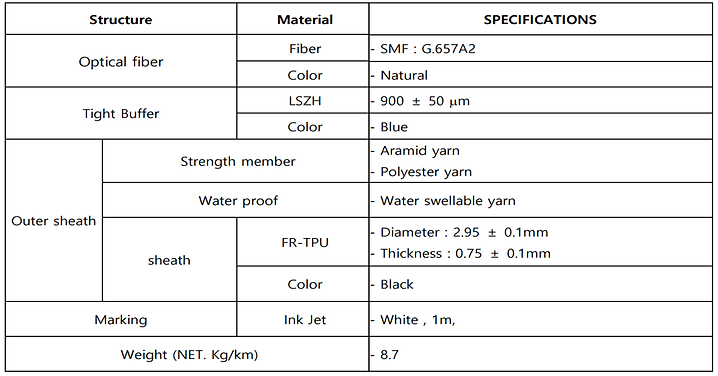

TPU 3.0mm Cable Structure

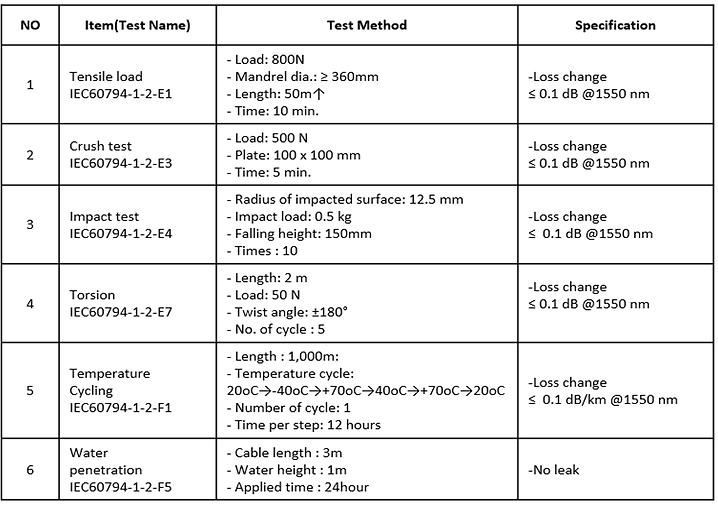

Mechanical & Environment Requirements

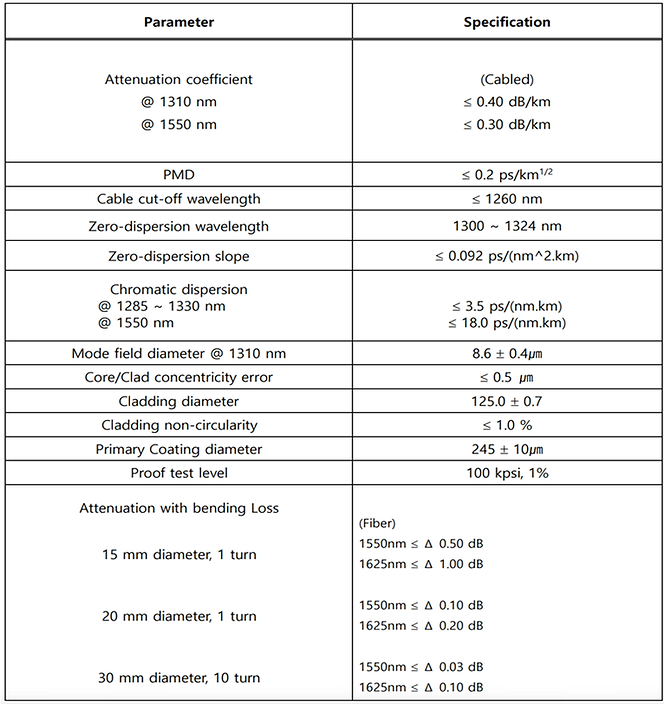

Single Mode Fiber Characteristics(G657 A2)
